Ask a Darley Engineer: Thermal Relief Valves

By Wayne Hable, P.E., Chief Engineer

Question: How do I know if my thermal relief valve is working? Asked by: Chad Moffat, president, Boise Mobile Equipment

Darley’s new thermal relief valve is your answer. Our thermal relief valve is a device that ensures hot scalding water is not about to be discharged onto an unsuspecting person and also to safeguard the pump itself. We offer our thermal relief valve in two options: 12-VDC or 24-VDC. Our thermal relief valve opens when it senses 120˚F (49˚C) and allows the hot water to escape from the pump, assuming you have cooler water going into your pump to replace the hot water that has just escaped through the opened thermal relief valve. Essentially, our thermal relief valve assembly is a thermal switch that controls a ball valve, which opens when the thermal switch senses hot water. This opened ball valve then lets hot water escape from the pump. Once enough hot water has been replaced by cold water, the thermal switch will close the ball valve, which stops water from escaping the pump. This system will wait until it senses hot water again and repeat the process automatically.


Related Content

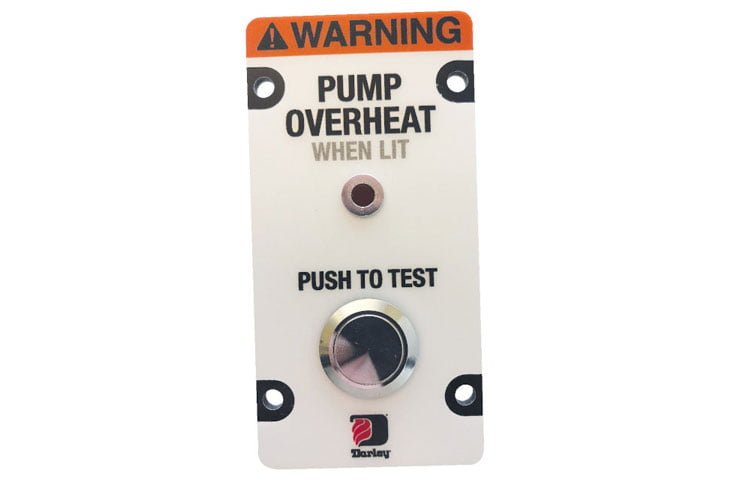

Now back to the question. Since many of you have never seen your thermal relief valve open up because you have never encountered hot water, Darley has just added a “Push To Test” button on the thermal relief valve’s pump panel plaque. Simply press this button, and it forces open the ball valve that the thermal switch typically controls. Upon pressing, when there is positive water pressure within your pump, a panel light should ignite, and water will be seen escaping from your thermal relief valve. You now have a way to ensure your thermal relief valve opens. When you release the button, the light will go off, and the ball valve will close if no hot water is detected in your pump.

See also  The Pump Choice for Fleets Across the Country

Thermal relief valves are an available option to add to any Darley pump, from our smallest portable to our largest midship pump. Some assembly will be required, and you will need to provide electrical power for this device.

For more information, visit www.darley.com.

Author

    Topics

    Essentially, Darley's thermal relief valve assembly is a thermal switch that controls a ball valve, which opens when the thermal switch senses hot water.
